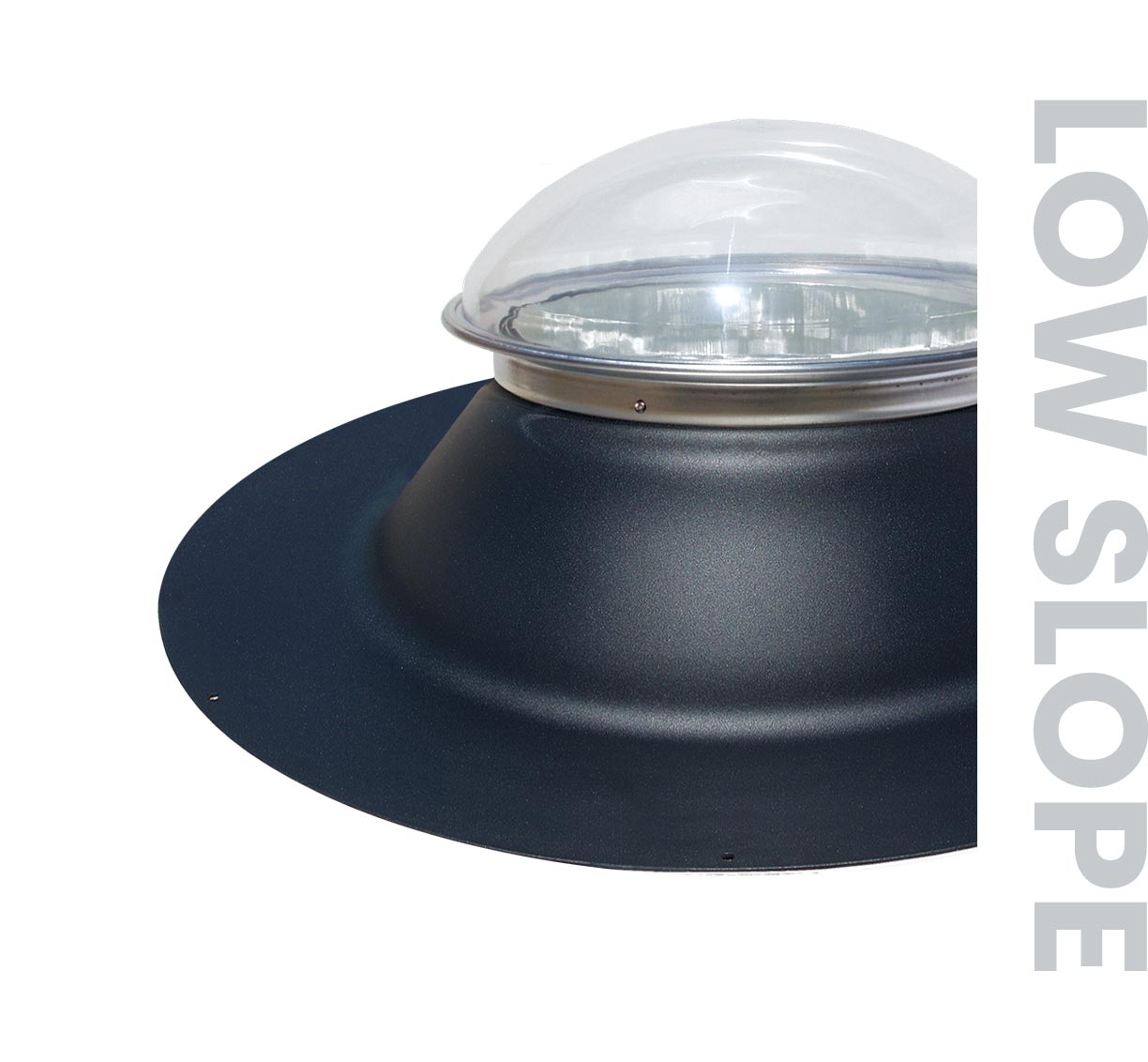

Natural Light flat roof tubular skylight dome and flashing

For Residential Homes with Flat or Low Sloping Roofs

All our tubular skylights feature all the same quality components but with slight modifications to the flashing to accommodate various roof styles and slopes.

The flat roof model incorporates a flashing with a straight shaft providing a vertical opening for the light pipe. It can accomodate roofs with up to a 2:12 slope. The flashing is constructed of heavy grade aluminum with no seams. Its round shape minimizes damage to roof shingles and enables it to withstand the stresses of expansion and contraction due to the temperature variations.

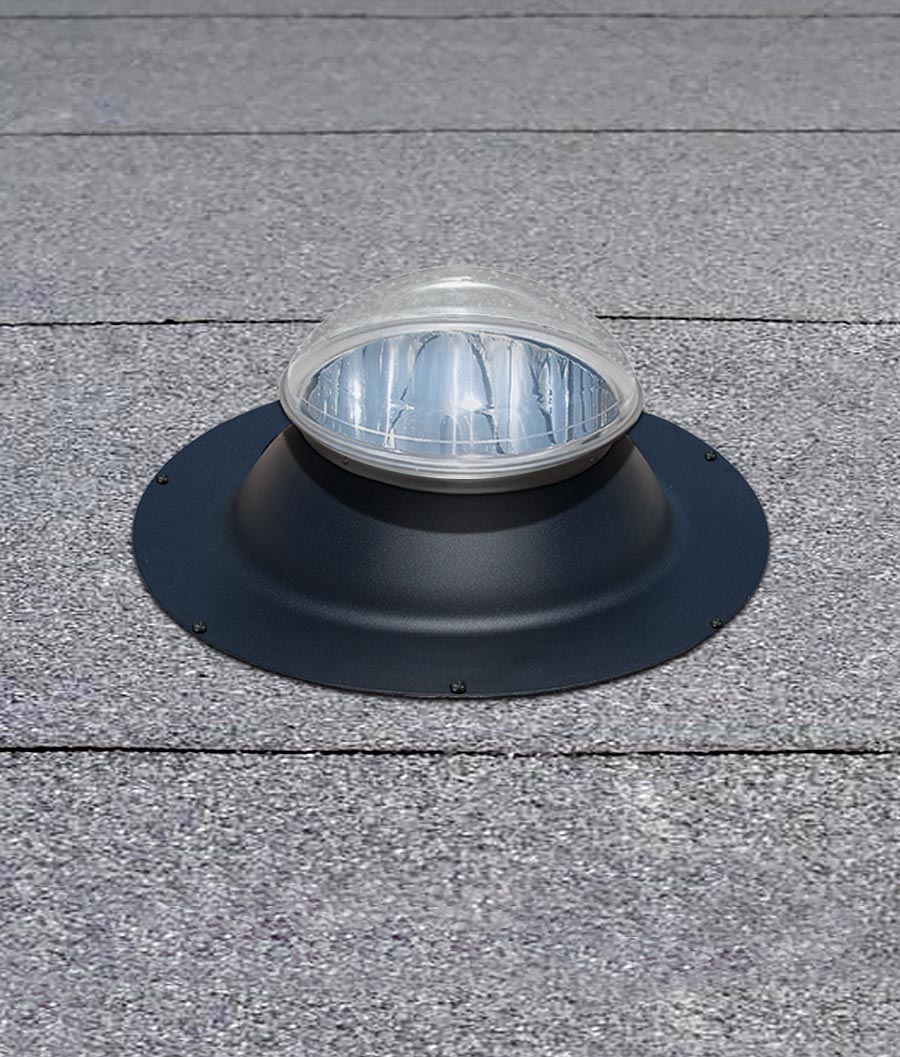

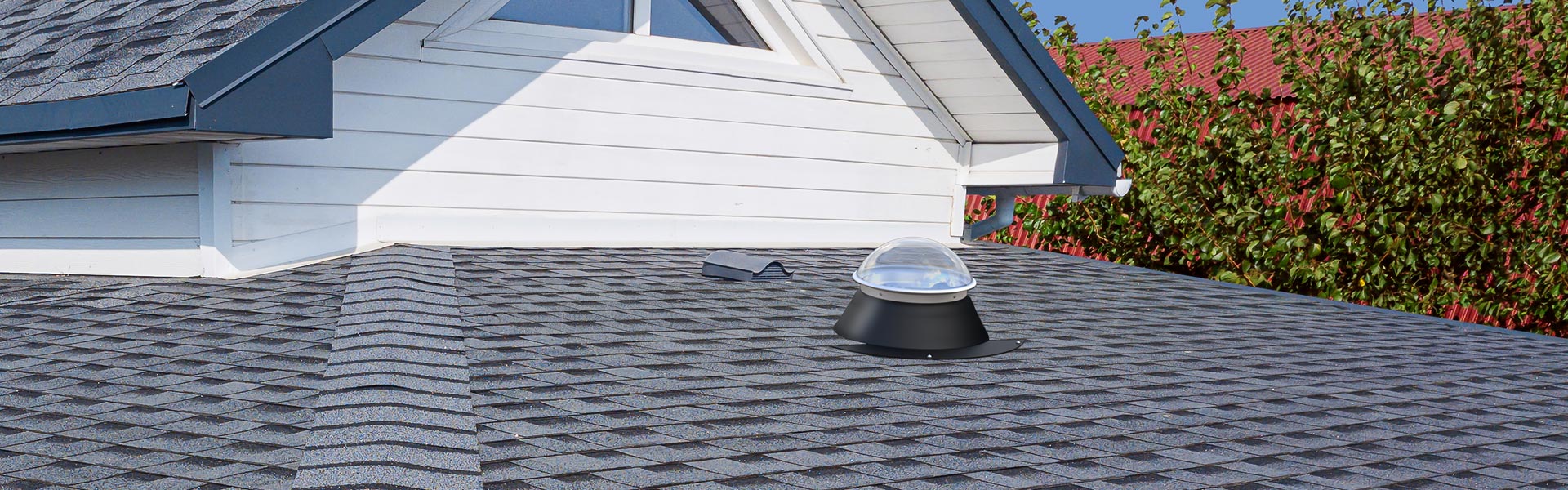

NLES tubular skylight on flat asphalt roof

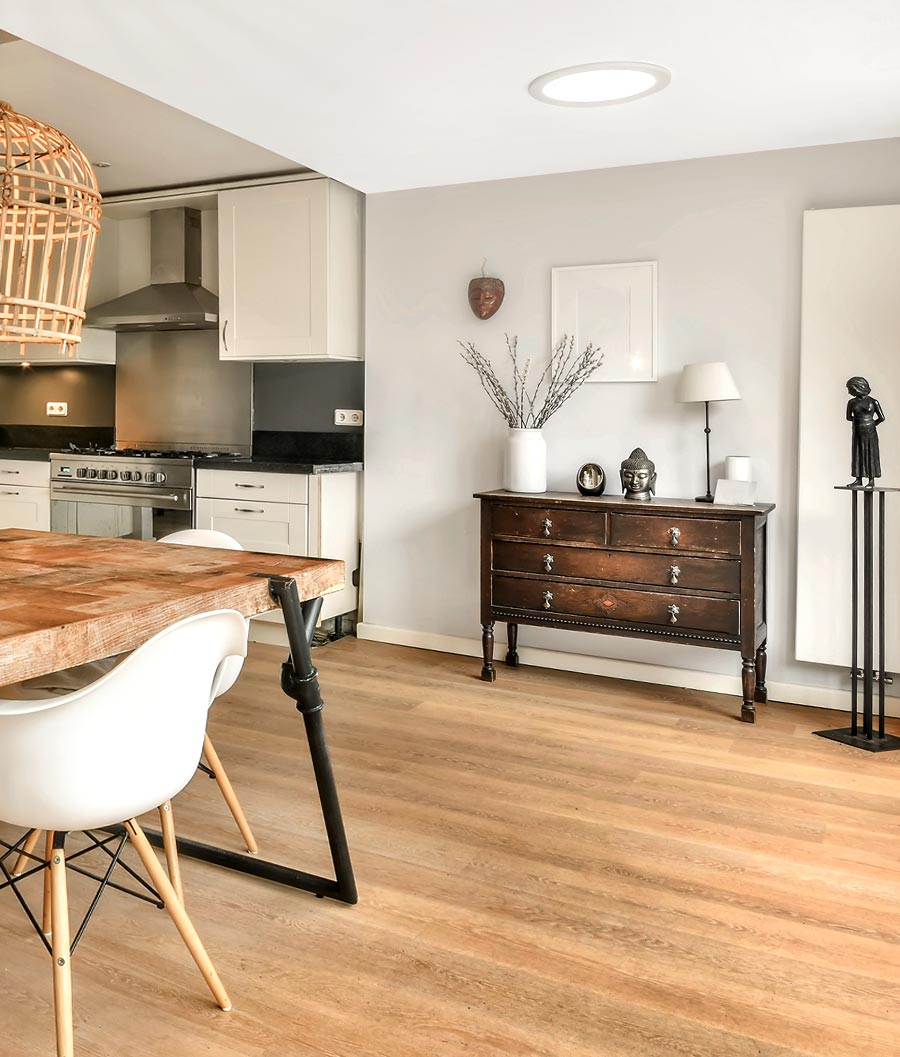

Natural Light tubular skylight installed in living room

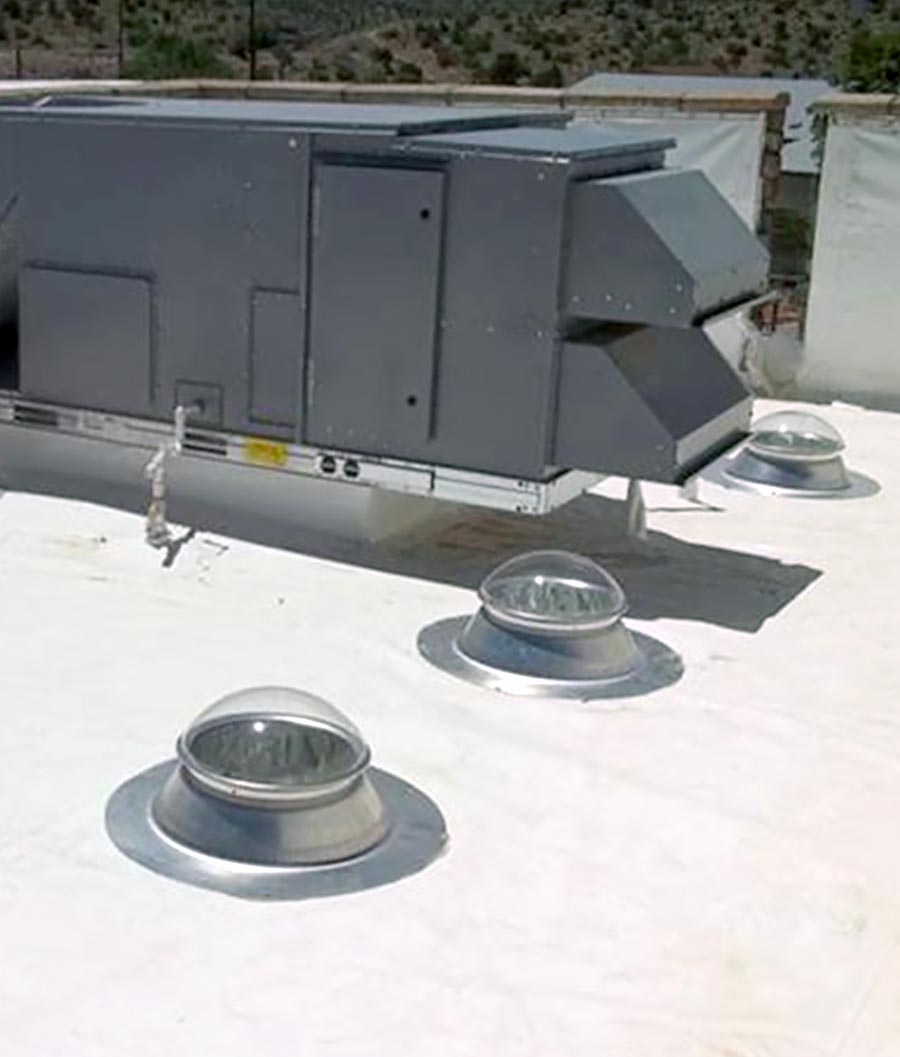

Natural Light flat roof tubular skylight installed on foam roof

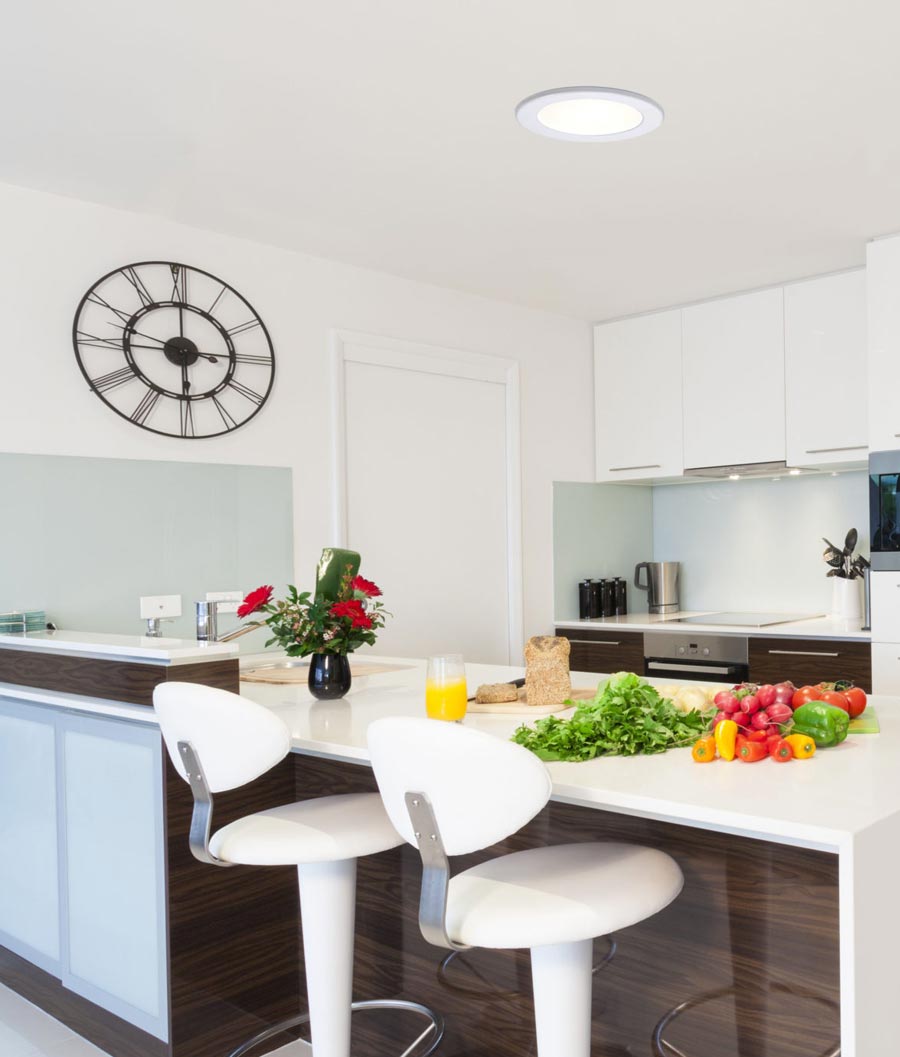

Natural Light residential tubular skylight installed in modern kitchen

NLES tubular skylight on flat asphalt roof thumb

NNatural Light tubular skylight installed in living room thumb

Natural Light flat roof tubular skylight installed on foam roof thumb

Natural Light residential tubular skylight installed in modern kitchen thumb

RESIDENTIAL OR COMMERCIAL

Flat Roof Tubular Skylight

10" | 13" | 18" | 21" Models

Flat Roof Model Overview

Attaches directly to the roof decking
Designed for residential or commercial flat roofs up to 2:12 pitch
Roof types include modified bitumen, built-up, rubber membrane, vinyl and polyurethane foam
Installs easily with no structural changes or wiring required
Performs optimally from sunup to sundown
Disperses light evenly while blocking 99% of harmful UV rays
Condensation release dome prevents fogging due to humidity
Aluminum housing is powder coated both inside and out to prevent corrosion
Available in 3 colors: Black Satin, Bronze Gloss or Mill Finish

Manufactured using Quality Components more about Components

High Impact Acrylic Dome - with stress collar to prevent dome from cracking under temperature fluctuations
Commercial Grade Aluminum Flashing - heavy-duty, seamless, and leakproof
Light Pipe - silver coated aluminum, 98% total reflectivity
Diffuser - choice of 4 styles to disperse light evenly without hot spots or glare
White Aluminum Ceiling Trim Ring - attractive, blends into any home decor

Available Accessories see Accessories

Vent Kit (10" only)
Dimmer Kit
Solar LED Light Kit
Electric Light Kit

Angle Adapters
Extra Light Pipe Sections
Turret Extension (10" & 13" only)
Tile Skirt

Flat Roof Model Specs

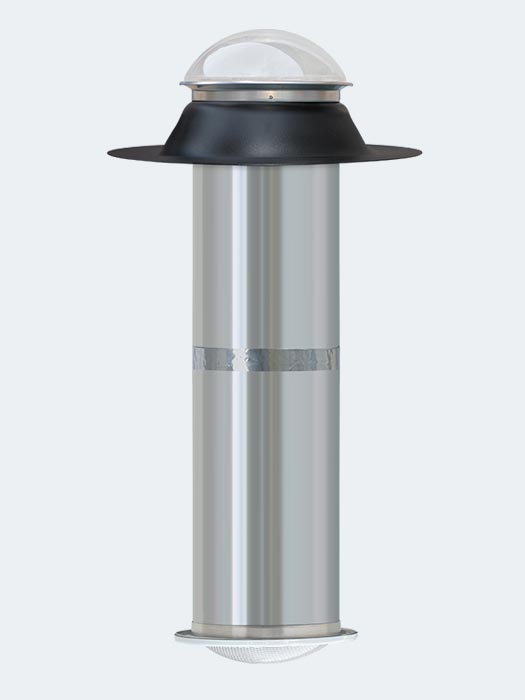

Natural Light 10 inch flat roof tubular skylight model

10" Kit

Model #:	10KFF
Coverage:	up to 150 sf
Wattage:	up to 300 sf
Kit Height:	4 feet
Max Length:	18 feet
Roof Slope:	up to 2:12
Colors:	⬤⬤

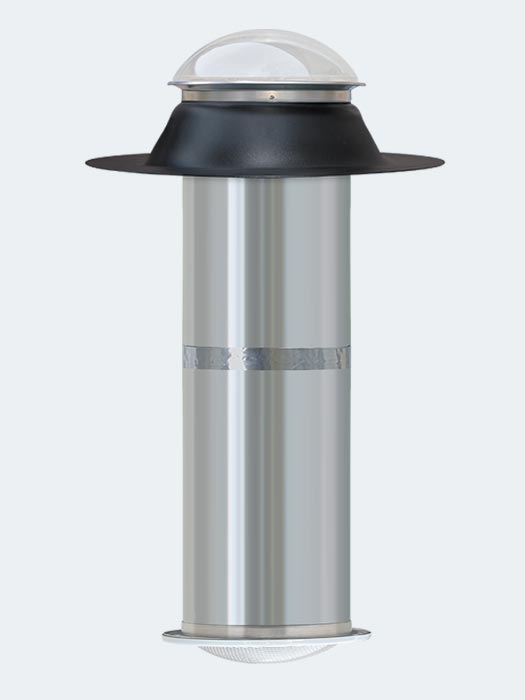

Natural Light 13 inch flat roof tubular skylight model

13" Kit

Model #:	13KFF
Coverage:	up to 300 sf
Wattage:	up to 500 sf
Kit Height:	4 feet
Max Length:	20 feet
Roof Slope:	up to 2:12
Colors:	⬤⬤

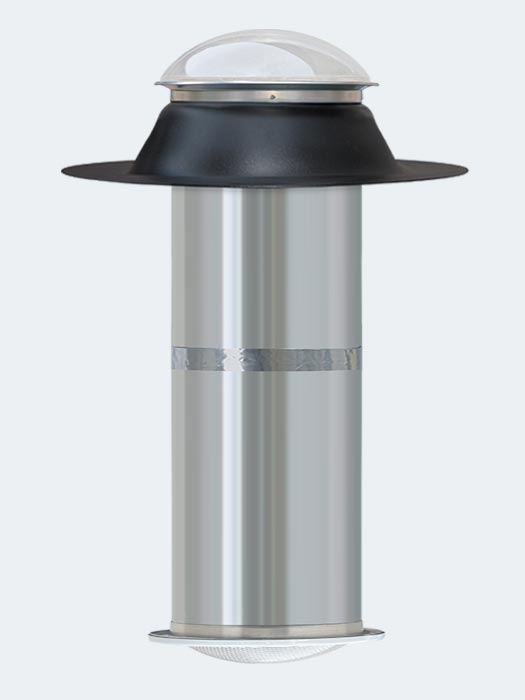

Natural Light 18 inch flat roof tubular skylight model

18" Kit

Model #:	18KFF
Coverage:	up to 500 sf
Wattage:	up to 1,000 sf
Kit Height:	4 feet
Max Length:	20 feet
Roof Slope:	up to 2:12
Colors:	⬤⬤

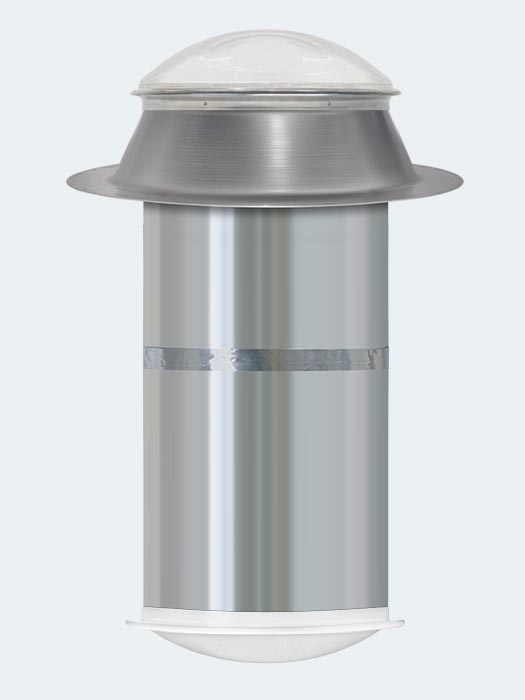

Natural Light 21 inch flat roof tubular skylight model

21" Kit

Model #:	21KFF
Coverage:	up to 700 sf
Wattage:	up to 1,450 sf
Kit Height:	4 feet
Max Length:	20 feet
Roof Slope:	up to 2:12
Colors:

EASY INSTALLATION: Natural Light tubular skylights installation requires no structural changes or wiring. Only basic DIY skills needed and can be completed in about 2 hours.

Get An Install

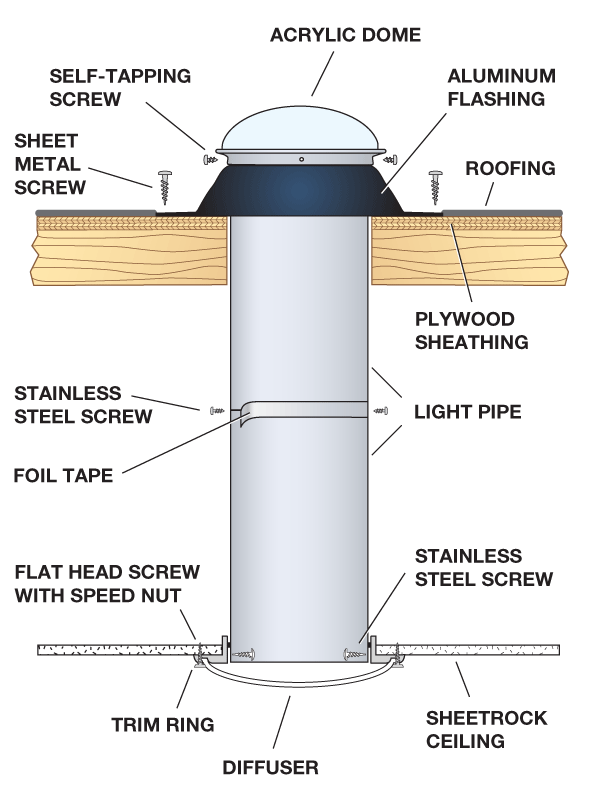

Installation Cutaway

Installation procedures vary between the flat roof, pitched roof and curb mount models. Pictured is a typical flat roof installation showing all components and hardware. Please follow the detailed instructions for your model and roof type.
